Description

Modbus Gateways or Modbus Serial Device Servers act as an interface, or 'Gateway', between Modbus devices and computer hosts running Modbus/TCP. These Gateways bridge Modbus devices to the Ethernet network and are a convenient solution to connect existing devices or controllers running Modbus/ASCII or Modbus/RTU to an Ethernet network.

Our gateways can fulfill flexible installation and web browser configuration requirements for remote monitoring applications. Our Modbus gateway products provide a simple and cost-effective means for bringing the advantages of remote management and data accessibility to devices that otherwise cannot connect to a network, easily allowing you to convert Modbus/ASCII and Modbus/RTU to Modbus/TCP.

• Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
• Integration of Modbus TCP and Modbus RTU/ASCII networks
• Supports up to 921.6 kbps, and any baud rate setting
• support up to 16 connections on each serial port under Modbus client mode and 32 sessions under Modbus server mode.
• Software selectable RS-232/422/485 communication
• Mounts on DIN-rail and Wall mount
• Built-in 15 KV ESD protection for all serial signals
• Automatic RS-485 data flow control
• Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV
• Support a wide operating temperature

Intelligent communication gateways are ARM-based robust platforms, with wireless and Ethernet communication, and multiple protocol support. Within the broad Industrial IoT field, governments, equipment manufacturers, factory owners, and smart city investors are seeking solutions that can help them utilize powerful data analytics to raise service levels and reduce operational costs. This means that the demand for an easy and reliable way to extract data from field applications is increasing. Advantech’s Industrial Communication Gateways are designed to simplify data acquisition and transmission. These solutions improve service quality by facilitating infrastructure connectivity, equipment monitoring, and energy consumption analysis. This allows manufacturers and organizations to obtain insights on usage behaviors and derive intelligence through the analysis of big data..

• Industrial-Grade Design and High Reliability
• Designed with industrial grade IC with long MTBF.
• IEC standard fulfills all mission critical applications.

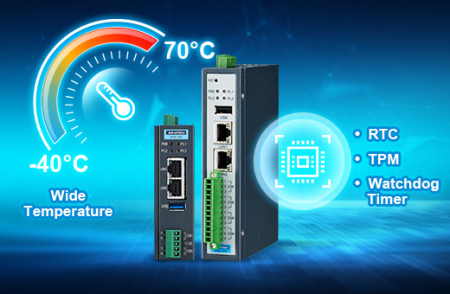

• Wide operating temperature range (-40~70°C).
• Battery powered RTC, independent WDT, and TPM support.
• Open Platform and Flexible I/O Extension
• Linux environment offers open and standard platform.
• Develop your own applications with C, Python, or 3rd party libraries.
• Multiple communication interface.
• EdgeLink bundle with protocol support for data from field devices.
• No coding support for Azure/AWS/Cumulocity/Sparkplug MQTT.
• OPCUA/ODBC/JDBC IT software and SQL database for data support.
•
